What is a water flow meter?
A water flow meter is a device that measures the volumetric flow rate or total volume of water passing through a pipe, essential for applications like irrigation, industrial monitoring, and compliance in Australia. These meters help detect leaks and optimise usage in bulk water management.
How does a water flow meter work?

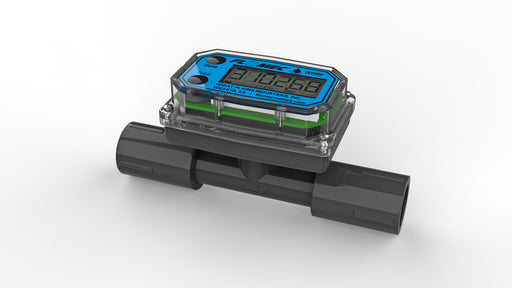

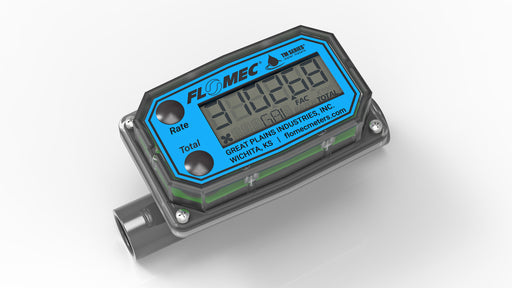

Water flow meters, such as the common turbine type use a rotating impeller driven by water velocity to calculate flow rate; the impeller's speed is proportional to the water's movement, displayed digitally or mechanically. Mechanical designs handle irrigation and industrial flows reliably with minimal maintenance.
Other technologies include:

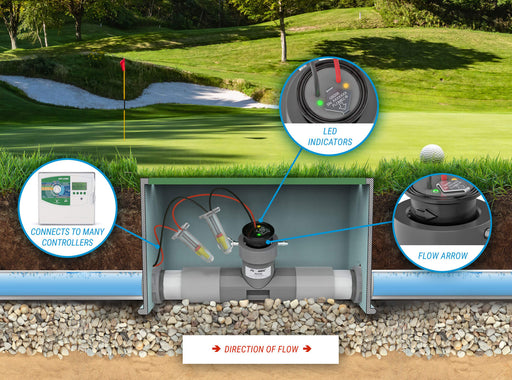

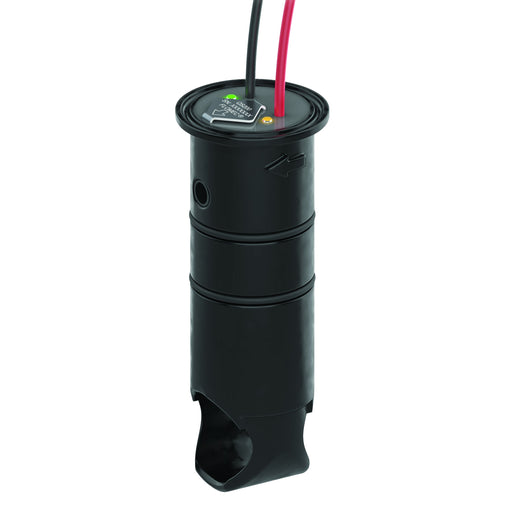

- Ultrasonic: Measures flow via sound wave transit time or Doppler shift; non-intrusive, no moving parts, ideal for dirty water or clamp-on installs. the FLOMEC QS200 is an example of ultrasonic technology.
- Electromagnetic (magmeters): Uses magnetic fields for conductive liquids like wastewater which are highly accurate as long as there are no obstructions.
- Vortex: Detects frequency of eddies from a bluff body; versatile for liquids/gases, good for impurities.
- Positive displacement: Traps/fills volumes of fluid repeatedly for precise total volume which suits low flows but needs clean fluids.
For advanced setups, explore our water monitoring and control solutions.
How do I choose the right size water flow meter?
Selecting the correct water flow meter size depends on your pipe diameter, expected maximum flow rate, minimum flow, and nominal flow, ensuring accuracy without pressure loss or cavitation. Not selecting the right water flow meter for the application does come with risks. Oversizing a flow meter can cause low-flow inaccuracy, while undersizing a flow meter risks overspeeding and damaging the flow meter.
Key steps:
- Measure pipe ID and calculate flow (L/min = pipe area × velocity.
- Check manufacturer product specifications such as flow rate (e.g., FLOMEC charts for turbine meters).
- Factor in your specific application: irrigation needs higher turndown than metering.
We have in an depth guide on the top 7 considerations when selecting a flow meter to assist in your search from a flow meter. Alternatively, you can contact our team for more information.
What are the most accurate flow meters for water?
Coriolis mass flow meters are the most accurate for water, achieving ±0.1–0.2% of rate. Coriolis mass flow meters have unmatched precision and can handle a wide turndown making it suitable for viscous and dirty water but have a very high cost.
